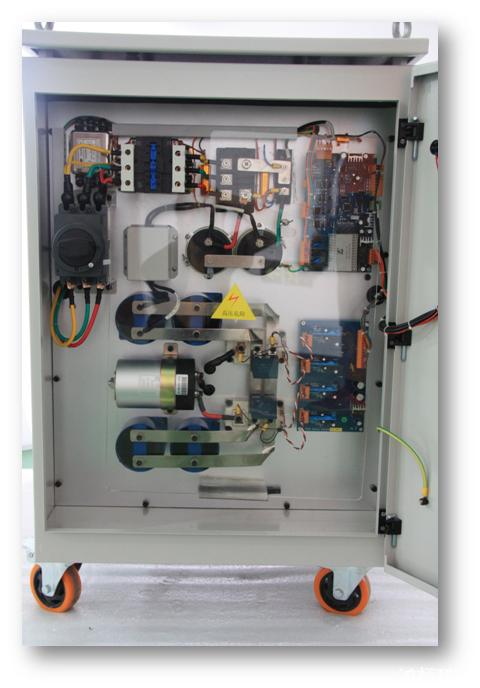

PIDS Stud Robotic Welding Machine

Product introduction

The welding system applies IGBT inverter technolog and DSP control technology,and have the capacity carrying 5 welding can be achieved, when the system docks with robots under auto-feeding.

Max.welding current can reach 2000A.

TECHNICAL DATA

A. Circuit topology: Full Wave Bridge Rectification

B. Current control technology: Constant Current PWM or Pulse

C. Power switch: IGBT

D. Power Transformer: Ferrite Dual Transformer

E. Interface monitoring: optoelectronic isolation

F. System Control: DSP+FPGA+CPLD

G. User interface: Touch Screen

H. Language: Chinese/English

I. Network Topology: Real-time half-DUPLEX RS 485, Ethernet, CAN, USB

J. Hardware Anti-interference: isolated power supply

K. Software Anti-interference: Distributed Watchdog,

error return and check, hiccup reset

L. Monitoring system: real-time working condition and fault detection

M.Quality assurance: monitoring and optimization of welding quality

OVERALL TECHNICAL DATA

Input voltage	3×380V, 50/60Hz	Max.KVA ransge	In:100~2000A
IPArc initiation current	20~100A	TWWelding time	6~100ms
IPArc initiation time	10~100ms	△I	△I：10A
Input voltage tolerance	380VAC±10%	Max.KVA ransge	120KVA
Welding rate	n: 30~60 (I=1500A, t=30ms)
Welding stud Range	Φ:3~12mm	Stud fixing time	50~2000ms
Feeding time	50~2000ms	Lag time	50~500ms
Stud falling time	0~50ms	Supporting capacity	5 gun interface, pne/more RS232 interfaces, Ethernet, optical fiber and CAN.
